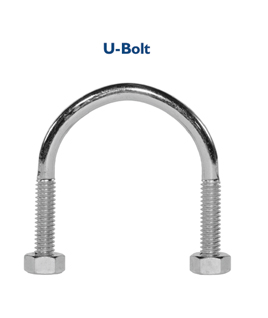

U BOLTS STANDARD LEG

Welcome to SachinShim's precision engineering world, where we excel in providing standard leg U-bolts to meet your specific needs. Our U-bolts are manufactured with a focus on precision and quality, offering reliable solutions for various applications.

  • • Standard U-Bolts are often used for the attaching of pipes or Steel round bars to round Wood or Steel posts, and may even be used to hang wrought Iron pipe in mechanical installations or be embedded in concrete as anchor bolts.
  • • These are essentially a single piece of Mild or Stainless Steel bar that is threaded at the end of either side and then shaped as the letter U.
  • • Standard U Bolts are available from Fastenright in Mild Steel Zinc Plate and Stainless Steel.
  • • U Bolt Dimensions range from M6 to M20 in terms of thread diameter.
  • • Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.
  • • THE DIMENSION GIVEN FOR U–BOLTS IS THE NOMINAL BORE (N.B.) OF THE PIPE. THE ACTUAL DISTANCE BETWEEN THE LEGS IS GREATER THAN THIS TO ALLOW FOR THE WALL THICKNESS OF THE PIPE. ALL OUR U–BOLTS ARE SUPPLIED WITH TWO HEX NUTS TO SUIT
NB MM NB NICHES A MM B MM C MM D MM
20MM 3/4IN 27 53 30 M6
25MM 1IN 36 60 30 M6
32MM 11/4IN 45 70 40 M10
40MM 11/2IN 51 75 40 M10
50MM 2IN 60 85 40 M10
65MM 21/2IN 76 100 40 M10
80MM 3IN 90 115 40 M12
100MM 4IN 114 140 40 M12
125MM 5IN 140 165 40 M12
150MM 6IN 170 200 50 M12

Gain insights into our meticulous manufacturing process, where we craft U-bolts with unmatched precision and attention to detail. We ensure that every U-bolt meets the highest standards of quality.

Quality is fundamental to our U-bolts. Learn how we maintain rigorous quality standards to guarantee the success of your projects. Excellence is our commitment when it comes to your U-bolt requirements.

Discover how our U Bolts Standard Leg serves a wide range of industries, including construction, automotive, and manufacturing. We are the trusted choice for standard leg U-bolts that deliver reliability and performance.

We take immense pride in being your preferred partner for standard leg U-bolts. Explore the compelling reasons to choose SachinShim for your U-bolt needs, including our dedication to delivering reliable and precision-engineered solutions. Your success in achieving secure and dependable fastening is our top priority.

Certification

We are certified to ISO 9001:2015 International Standards for Quality Management. Our products comply with API, ISO, DIN, BS, IS, AGMA standards and provides ATEX certification.
