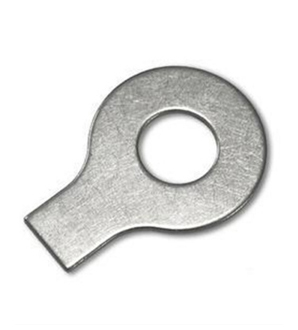

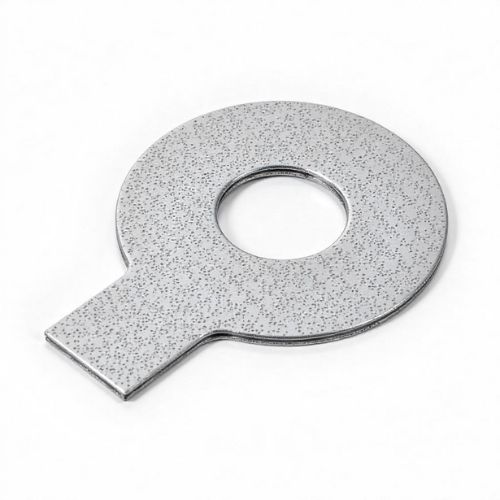

TAB WASHER

• • THICKNESS : 0.2 MM, 0.5 MM, 1.0 MM, 2.00 MM etc.
• • SIZE : Washers are available as per Din, IS, JS, BS& American Standards.
• • MATERIAL : : STAINLESS STEEL, BRASS, COPPER, M.S, Aluminium

Tab washers protect surfaces by evenly distributing torque when a bolt or screw is tightened. They prevent corrosion between a steel screw and an aluminium surface. A nylon washer can be placed under a machine screw to reduce noise and abrasion and offer electrical insulation.

Sachin shim is a manufacturer, supplier, and exporter of the finest quality tab washer in Mumbai - India

We manufacture and stock plain washers (both punched and machined) in every material such as Brass, Copper, Aluminium, Fibre, Mild Steel (M.S.), Stainless Steel ( Grade 201,202,304,316, 316L, 400 etc), Carbon Steel, Spring Steel, High Tensile Steel, Rubber, Plastic, Teflon, Beryllium Copper, Haste Alloy, Alloy steel, Monel Etc.

Hardening and tampering facilities were also provided. As a result, the material can be as per the hardness you require.

The material in Stock:-

• • Brass plain washers as per Indian Standards (I.S.)2016, Din and American Standards in mm & Inches
• • M.S. Plain washers as per Indian Standards (I.S.) 2016, Din and American Standards in mm & Inches.
• • Copper BSP plain washers.
• • Aluminium Plain Washers.
• • Fibre Plain washers
• • S.S. Plain washers as per Indian Standards (I.S.) 2016 in Grades 202, 304 & 316 in mm & Inches as per the Thickness you require

Product Range: - Thickness 0.1mm to 10mm

Size	For thread	D1	D2	H
1,7	M1,6	1,84	4	0,35
1,8	M1,7	1,94	4,5	0,35
2,2	M2	2,34	5	0,35
2,5	M2,3	2,64	6	0,55
2,7	M2,5	2,84	6	0,55
2,8	M2,6	2,94	7	0,55
3,2	M3	3,38	7	0,55
3,7	M3,5	3,88	8	0,55
4,3	M4	4,48	9	0,9
5,3	M5	5,48	10	1,1
6,4	M6	6,62	14	1,8
7,4	M7	7,62	14	1,8
8,4	M8	8,62	16	1,8
10,5	M10	10,77	20	2,2
13	M12	13,27	24	2,7
15	M14	15,27	28	2,7
17	M16	17,27	30	3,3
19	M18	19,33	34	3,3
21	M20	21,33	37	3,3
23	M22	23,33	39	3,3
25	M24	25,33	44	4,3
27	M26	27,33	50	4,3
28	M27	28,33	50	4,3
29	M28	29,33	50	4,3
31	M30	31,39	50	4,3
33	M32	33,62	60	5,6
34	M33	34,62	60	5,6
36	M35	34,62	66	5,6
37	M36	37,62	66	5,6
