Understanding Brass Shim Sheets: Composition, Characteristics & Grades Explainede

Welcome to our comprehensive guide on Brass shim sheets! Whether you’re new to this topic or looking to deepen your understanding, you’re in the right place. In this guide you go through what makes Brass shim sheets essential in various industries, focusing on their composition, characteristics, and grades.

What are Brass Shim Sheets?

Brass shim sheets are thin, flat pieces of brass that are used to adjust the alignment between two or more components. They are essential tools in manufacturing processes, providing precision and flexibility in various applications.

Composition of Brass Shim Sheets

Brass shim sheets are primarily composed of a mixture of copper and zinc. The exact composition can vary, but here’s a general breakdown:

Copper (Cu): Typically makes up about 60-70% of the composition. Copper provides Brass shim sheets with excellent corrosion resistance and good machinability.
Zinc (Zn): Constitutes the remaining 30-40%. Zinc enhances the strength and hardness of the brass, making it suitable for various applications.
Additional Elements: Sometimes, small amounts of other metals such as lead or tin are added to improve machinability or specific properties. These elements are usually present in trace amounts.

The combination of copper and zinc in brass shim sheets results in a material that is both durable and versatile, making it a popular choice for many engineering applications. For a variety of needs, including those involving ss shim plates and stainless steel shims, understanding the base composition of Brass shim sheets helps in selecting the right type for your project.

Characteristics of Brass Shim Sheets

Understanding the key characteristics of brass shim sheets will help you appreciate their value in manufacturing. Here are the main attributes:

Corrosion Resistance: Brass shim sheets are resistant to corrosion, making them ideal for use in environments where exposure to moisture or chemicals is a concern.

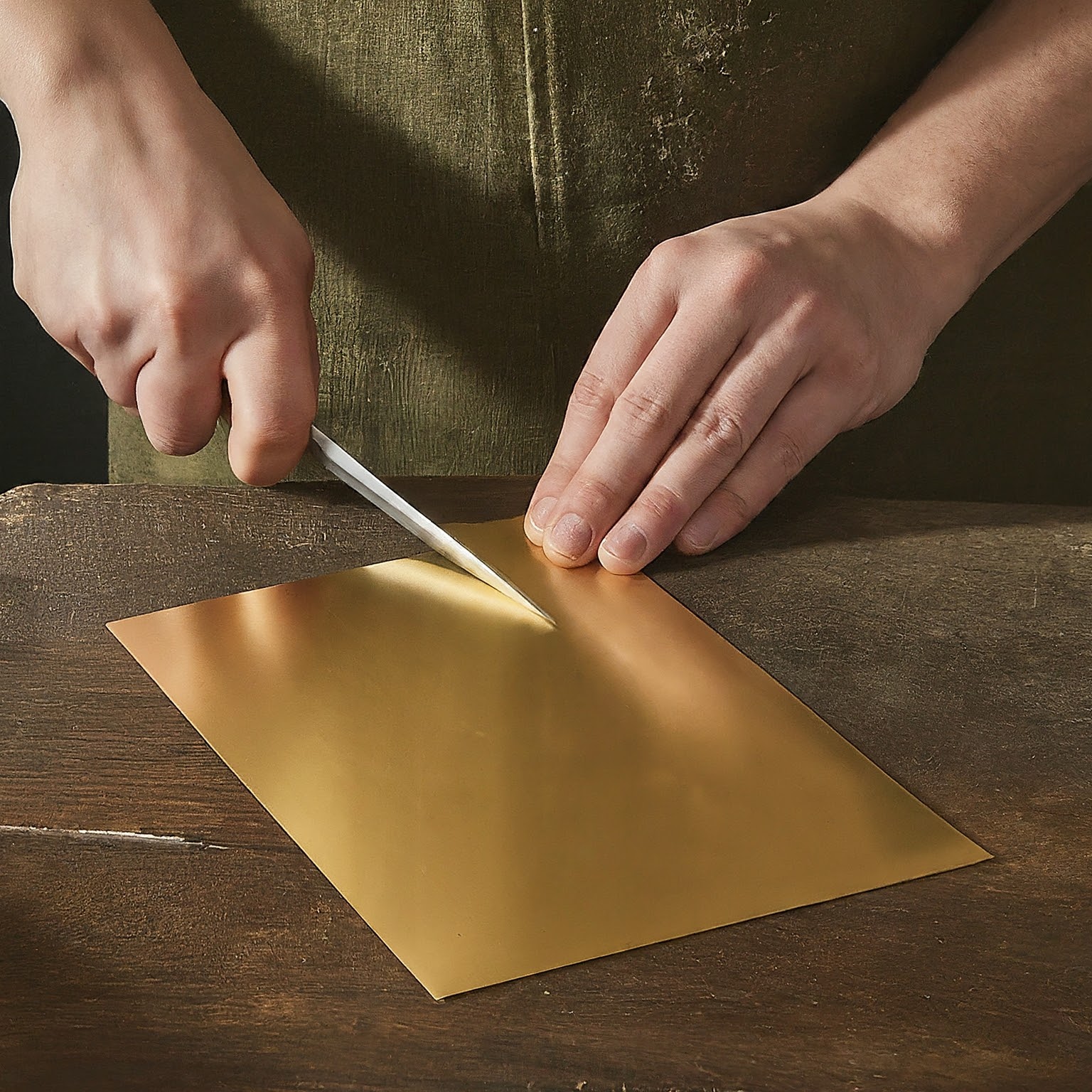

Machinability: They are easy to machine and cut, which allows for precise adjustments and custom fitting. This property is also shared by ss shims and shim sheet metal.
Strength and Durability: Brass shim sheets offer a good balance of strength and flexibility. They can withstand mechanical stress while maintaining their shape and performance.
Thermal Conductivity: Brass has good thermal conductivity, which helps in applications where heat dissipation is important.
Aesthetic Appeal: The golden-yellow color of brass provides a visually appealing finish, which can be beneficial for applications where appearance matters.

Different Grades of Brass Shim Sheets

Brass shim sheets come in various grades, each suited for different applications. Understanding these grades can help you select the right type for your needs:

C26000 (Cartridge Brass): Contains approximately 70% copper and 30% zinc. Known for its excellent ductility and good machinability. Ideal for applications requiring high formability.
C28000 (Commercial Bronze): Composed of about 85% copper and 15% zinc. Offers higher strength and corrosion resistance compared to other grades. Suitable for demanding environments.
C36000 (Free-Cutting Brass): Contains about 60% copper and 35% zinc, with a small amount of lead added for improved machinability. Used in applications where ease of machining is crucial.
C46400 (Naval Brass): Includes approximately 60% copper, 39% zinc, and 1% tin. Known for its excellent resistance to seawater corrosion, making it suitable for marine applications.

When choosing a grade, consider factors like corrosion resistance, machinability, and strength requirements to ensure you select the right Brass shim sheets for your project. If you're also considering shim washer manufacturers or shim manufacturers in India, you can find options that cater to various grades and requirement

Applications of Brass Shim Sheets

Brass shim sheets are incredibly versatile and used in various applications. Here are some common uses:

Mechanical Assemblies: Used to adjust the fit and alignment of parts in machinery and engines. For instance, precut shims are often employed in these scenarios for precise adjustments.
Electronics:Employed in electronic components and connectors where precise spacing and alignment are required.
Automotive Industry: Utilized in automotive parts for precise adjustments and to reduce vibration and noise.
Aerospace: Applied in aerospace components for their high strength and corrosion resistance.
Construction: Used in construction applications where durable and reliable shims are needed.

Understanding these applications can help you see how brass shim sheets contribute to various industries and improve the performance and reliability of products. For applications requiring stainless steel shim manufacturers or steel shims India, it’s important to consider material properties and application needs.

How to Choose the Right Brass Shim Sheet

Selecting the right Brass shim sheets involves considering several factors:

Application Requirements: Identify the specific needs of your application, such as strength, corrosion resistance, or machinability.
Grade Selection: Choose a grade based on your requirements. For example, C26000 is excellent for general use, while C46400 is better for marine environments.
Thickness and Size: Ensure the shim sheet is the correct thickness and size for your application. Custom sizes may be available from suppliers, including shim sheet metal and ss shim plate options.
Supplier Quality: Purchase from reputable shim manufacturers or shim washer manufacturers India to ensure you receive high-quality products that meet your specifications.

Conclusion

Brass shim sheets are essential components in many industries due to their unique composition, beneficial characteristics, and versatile grades. Understanding the different grades, characteristics, and applications will help you make informed decisions for your projects.
